Multi Channel Display Boards · DY Series

Critical Process Parameters. Live and Visible.

Multi Channel Display Boards are wall-mounted LED displays that bring live process data to every operator on the plant floor. Whether monitoring temperature, pressure, flow, level, or any other parameter, these displays show multiple readings simultaneously in large,…

Request a Quote See the range
Product Range

Seven display boards, one build platform

All boards use bright red 7-segment LED digits and are made to order in Lucknow. Pick the one that matches what you need to show.

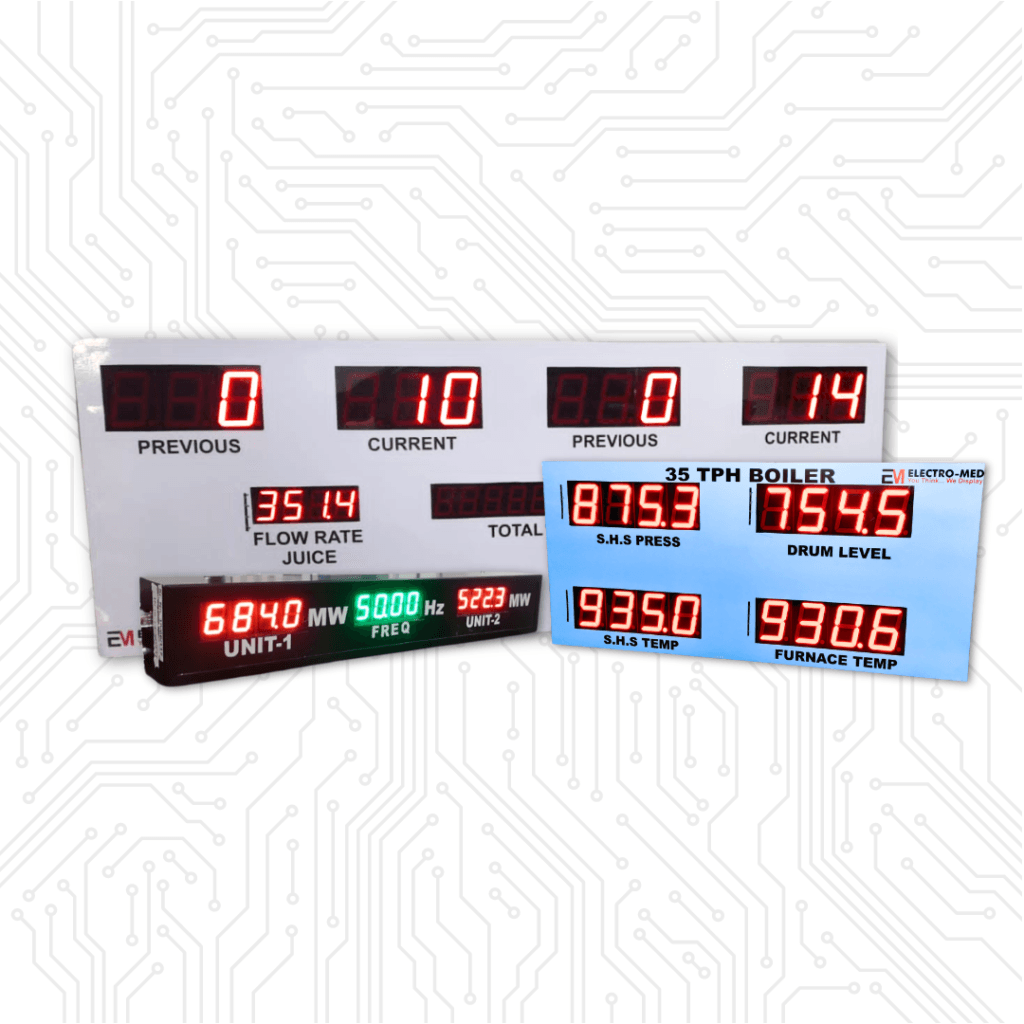

Multi Channel Display by Electromed

Multi Channel Display

General-purpose board with 2 to 8 independent channels. Mix 4–20 mA, Modbus RS485 and Modbus TCP/IP inputs on the same board.

2–8 channelsMixed inputs2"–8" digits
View details
Parameter Display Board by Electromed

Parameter Display Board

Show temperature, pressure, level and flow together. Field-settable range, decimal point and units, with alarm relays per channel.

Process valuesPer-channel alarms
View details
Industrial Display Board by Electromed

Industrial Display Board

Up to 8 channels from 4–20 mA, Modbus RS485, Modbus TCP/IP or WiFi. Digit height chosen per channel.

Up to 8 channelsIP54 / IP65
View details
Modbus Display by Electromed

Modbus Display

Dedicated Modbus RS485 and TCP/IP display in master or slave mode. 4" to 12" digits, up to 10 digits.

RS485TCP/IP4"–12"
View details
MW Display Board by Electromed

MW Display Board

MW, MVAR and frequency for power plants. Frequency taken directly from the bus via PT. Total MW is summed automatically.

MW / MVARFrequency
View details
Production Display Board by Electromed

Production Display Board

Plan against actual counts for several production lines at once, with threshold alarms. 2 to 8 counters per board.

Multi-lineCounters
View details
Andon Display by Electromed

Andon Display

Production line status, downtime and shift tracking, readable across the shop floor.

Line statusShift tracking
View details
Choose

Which board do I need?

Show several process values (temperature, pressure, level, flow) Parameter Display Board Mix 4–20 mA and Modbus signals on one board Multi Channel Display Read values from a Modbus device (RS485 or TCP/IP) Modbus Display Show power generation: MW, MVAR, frequency MW Display Board Track production counts against plan Production Display Board Show line status, downtime or shift information Andon Display Custom channel count, digit height per channel, harsh area Industrial Display Board
How to Order

Order code guide

Format: DY[SIZE]P-[CHANNELS]-[DISPLAY]-[INPUT]-[OUTPUT]-[IPRATING]-[PS]. Modbus Display uses MD[SIZE]-[DIGITS]-[INPUT]-[OUTPUT]-[IPRATING]-[PS]. Not sure? Send us the parameters and we will build the code for you.

SegmentCode optionsDescription
Size02, 04, 06, 08, 12Panel size in inches (digit height)
Channels2–8Number of independent channels or parameters
DisplayLED, VFDDisplay technology. Bright red LED is standard
InputIN1 (4–20 mA), IN2 (Modbus), IN3 (TCP/IP)Signal type. Mix types on the same board
OutputOP0 (none), OP1 (relay)Alarm relay output per channel
IP ratingIP54, IP65Enclosure protection. IP54 is standard
Power supplyPS1 (230 V AC)Electrical power requirement
Before you buy

Six questions to answer first

1

How many parameters?

Count each value you want shown. Boards take 2 to 8 channels, so a second board is better than a crowded one.

2

What signal comes from the field?

4–20 mA, Modbus RS485, Modbus TCP/IP or WiFi. Different signal types can share one board.

3

How far is the viewer?

Choose digit height by distance: 2" for a few metres up to 8" for large halls. Tell us the distance and we will size it.

4

Is the area wet, dusty or outdoor?

IP54 is standard. IP65 is available for wet or dusty locations.

5

Do you need alarms?

High and low alarm relays can be added per channel to drive lights or hooters.

6

Do you need a retransmission or SCADA link?

Optional RS485 Modbus output lets the board feed your SCADA or PLC.

Get In Touch

Specify your display board

Tell us how many parameters, what signals, and how far the viewer is. We will quote within 24 hours.

Send Enquiry WhatsApp Us
