Pollution Parameter Display

CPCB-compliant
air quality boards

Outdoor LED display boards showing live pollution parameters — PM2.5, PM10, SO₂, NOₓ, CO, AQI — for industries, monitoring stations, and smart city projects. Direct connection to CAAQMS systems.

6000^nit

Outdoor brightness

IP⁶⁵

Weather sealed

8⁺

Parameters shown

Get a Quote All LED Boards WhatsApp Us

3-year on-site warranty

8-week delivery lead time

Any size, custom aspect ratio

Made in Lucknow, India

Regulatory Compliance

CPCB compliance for pollution data display

Our boards meet the requirements of the Central Pollution Control Board for real-time public display of environmental data at industrial premises and public areas.

Our Pollution Parameter Display Boards are fully compliant with the Central Pollution Control Board (CPCB) Guidelines, Section 17 and 18 (Air Act 1981 and Water Act 1974). These boards ensure real-time display of critical pollution parameters:

Air Quality Index

PM2.5, PM10, SO₂, NOₓ, CO, Ozone, and AQI composite index

Water Quality

pH levels, dissolved oxygen (DO), biological oxygen demand (BOD), temperature

Noise Levels

Real-time noise pollution monitoring data where applicable under CPCB norms

The boards integrate with monitoring equipment via Modbus, APIs, or databases, ensuring accurate and reliable data dissemination. They comply with the CPCB's requirement for high-visibility displays at industrial premises and public areas.

Stay Compliant. Stay Transparent.

CPCB Section 17 & 18 Air Act 1981 Water Act 1974

AQI Colour Coding — as per CPCB standard

Good

0–50 AQI

Satisfactory

51–100

Moderate

101–200

Poor

201–300

Very Poor

301–400

Severe

401+

Our displays automatically change colour based on live AQI value — no manual update required.

CPCB compliantDisplay format and parameter layout as per CPCB guidelines for continuous monitoring

CAAQMS compatibleConnects directly to Continuous Ambient Air Quality Monitoring Systems (CAAQMS)

Outdoor ratedIP65 cabinet, 6000+ nit brightness — readable in direct sunlight at 50 m

Multi-parameterDisplay PM2.5, PM10, SO₂, NOₓ, CO, CO₂, and AQI simultaneously on one board

3-year warrantyOn-site warranty with 48-hour response. Replacement units available for critical sites

Installations

Installed and running across India

Real projects commissioned by our team — power plants, shopping malls, corporate campuses, and government sites.

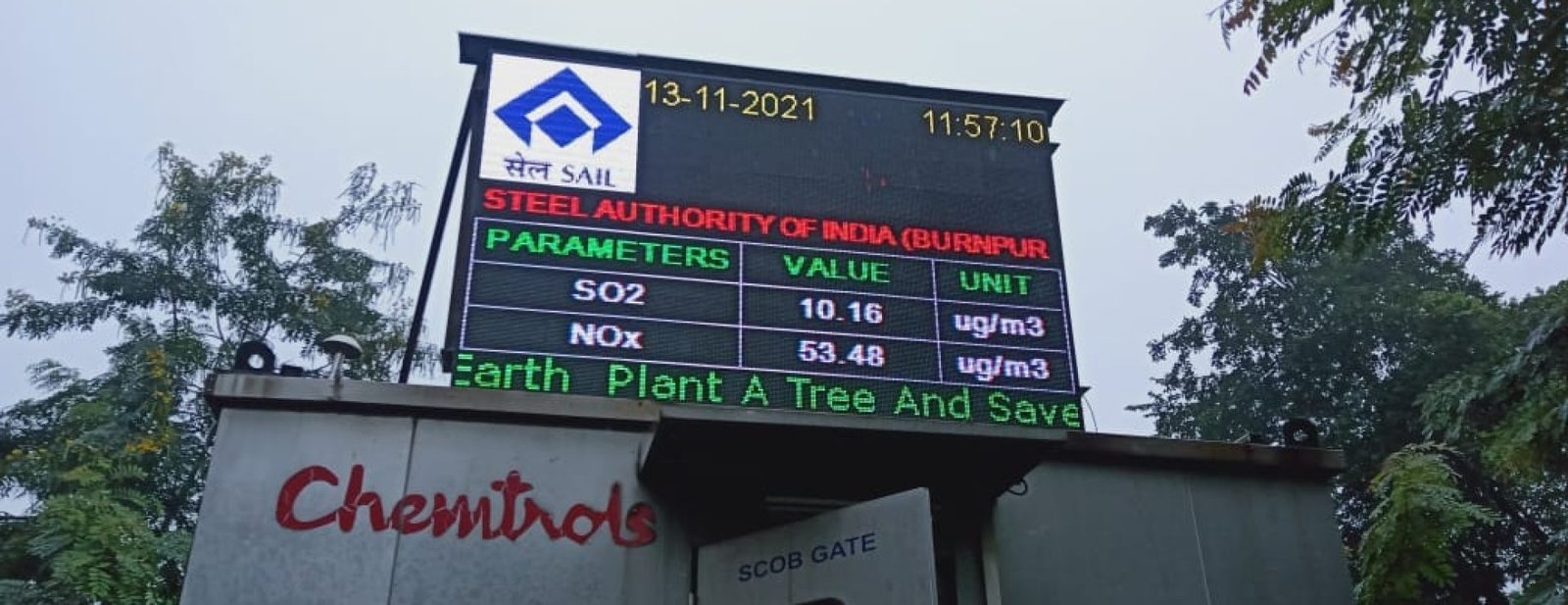

SAIL IISCO

Asansol, WB

8ft x 5ft

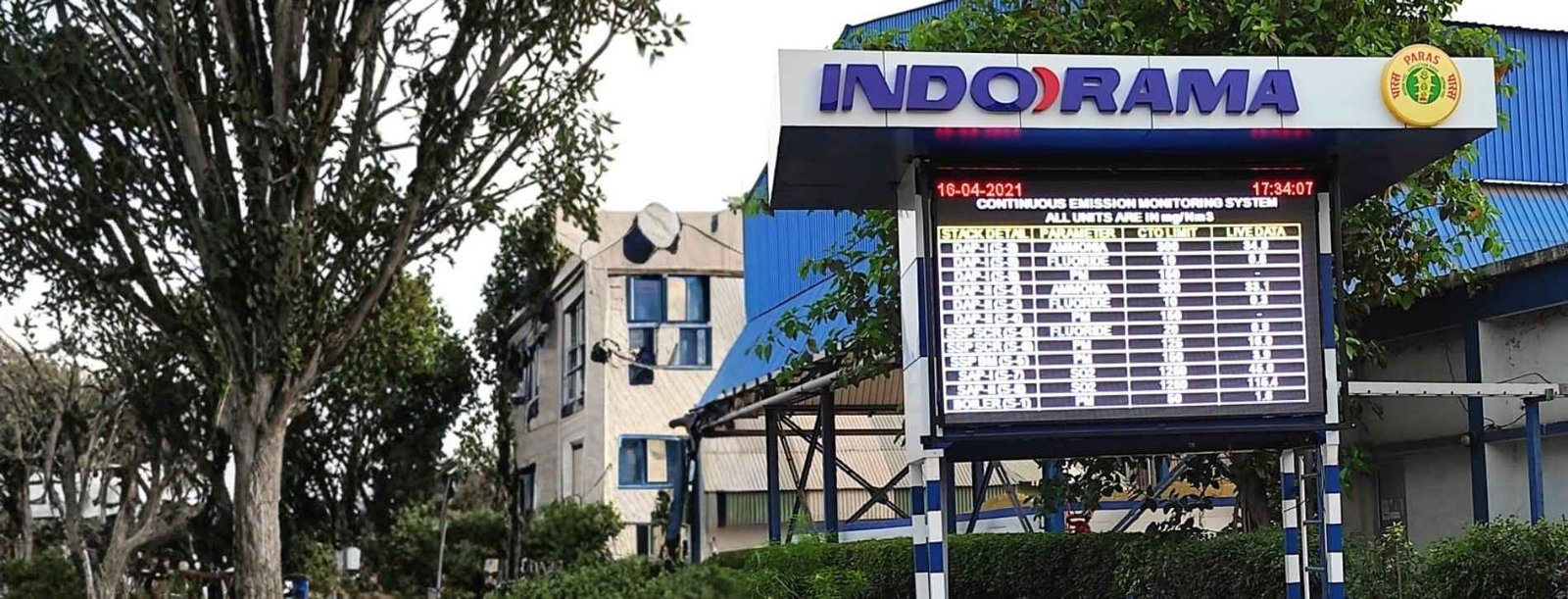

Indorama

Haldia, WB

8ft x 5ft

NTPC Auraiya

Dibiyapur, UP

5ft x 2ft

P10 Red

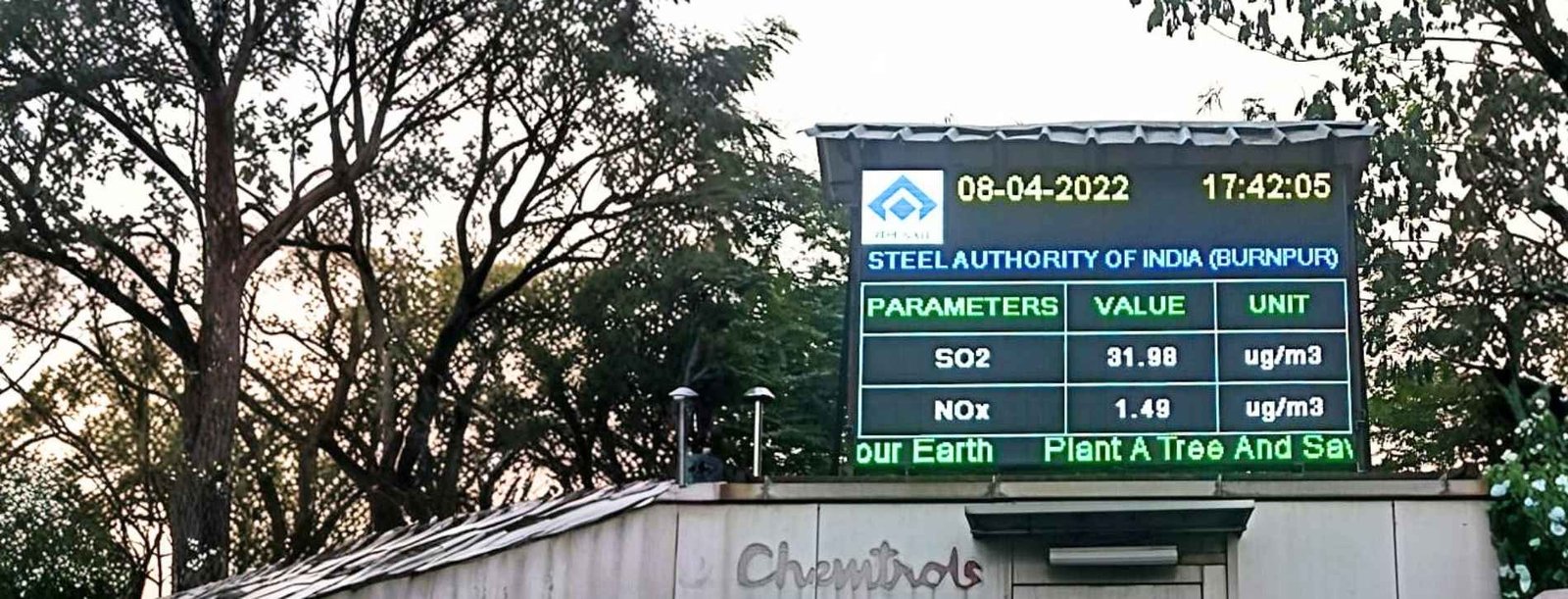

SAIL IISCO

Asansol, WB

12ft x 6ft

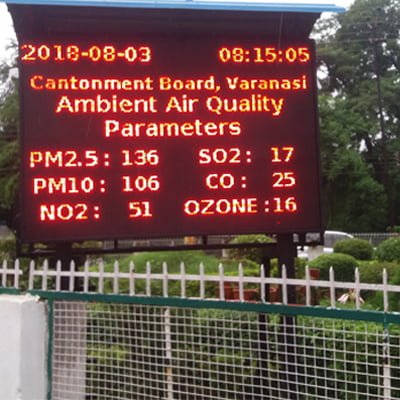

Pollution Parameter Display

Varanasi, UP

6ft x 4ft

P10 Red

Installation photographs from completed Electromed projects.

Built for compliance sites

Every feature chosen for pollution monitoring

All required parameters

PM2.5, PM10, SO₂, NOₓ, CO, CO₂, Ozone, and AQI index — all configurable on a single board. Parameter layout matches CPCB display format requirements.

CAAQMS direct connection

Connects directly to CAAQMS data loggers via RS485, Modbus, or network interface. No manual data entry — live feed updates the display automatically.

AQI colour coding

Automatic colour change — green (Good), yellow (Satisfactory), orange (Moderate), red (Poor), maroon (Very Poor), dark maroon (Severe). Matches CPCB AQI colour index.

Daylight readable

6000–8000 nit outdoor brightness. Clearly readable in direct afternoon sunlight. IP65 rated — monsoon-proof enclosure with anti-corrosion treatment.

Standard pollution board spec

P4 Outdoor Pollution Display

Pixel pitch4 mm

Brightness6000–8000 nit

ParametersPM2.5, PM10, SO₂, NOₓ, CO, AQI

Data inputRS485, Modbus, LAN

IP ratingIP65

LegislationAir Act 1981, Water Act 1974

ComplianceCPCB Sec. 17 & 18

Warranty3 years on-site

Real-Time Data

Advanced integrations for live data display

Connect our displays directly to your existing systems — no middleware, no third-party software. Data appears on the board within milliseconds.

Excel / CSV

Live feed from Excel spreadsheets or CSV files via network share or USB

SCADA / PLC

Direct connection to Siemens, Allen-Bradley, and other SCADA/PLC systems

4–20
mA

4–20 mA Analog

Standard industrial analog signal — connect any transmitter or sensor directly

Mod
bus

Modbus RTU / TCP

RS485 Modbus RTU and Modbus TCP/IP — industry standard for field devices

SQL Database

Read live values from MySQL, MS SQL Server, or any ODBC-compatible database

Oracle Database

Oracle DB integration for enterprise-scale industrial data display systems

{ api }

REST API

Custom API integration — pull data from any web service, IoT platform, or cloud system

RS485 / RS232

Serial protocol direct connection for legacy instruments and meters already on-site

Not sure which integration suits your system? Tell us what you have — our engineers will specify the right connection method.

Buyer's Guide

How to select the right LED display

Six factors that determine which board is right for your site. Answer these before requesting a quote and we can turn around a proposal in 24 hours.

Location

Decide if the display is indoor, outdoor, or semi-outdoor. This drives brightness (nit), IP rating, and cabinet construction. Outdoor needs 6000+ nit and IP65. Indoor can be lower brightness with finer pitch.

Viewing distance

Pixel pitch in mm ≈ minimum comfortable viewing distance in metres. P4 looks crisp from 4 m away. For close-range viewing (under 3 m), choose P2.5 or finer. For long-range outdoor, P6–P10 is sufficient and more cost-effective.

Wall size & structure

Our standard cabinet is 960 × 960 mm. Final wall size should be a multiple of this. We provide structural drawings, mounting hardware, and civil drawings for all installation types — wall-mounted, freestanding, or suspended.

Content type

Static text and parameter values need a simpler controller. Full video requires higher bandwidth. Real-time industrial data (SCADA, PLC, 4–20 mA) needs our industrial display controller with native signal input — no PC required.

Maintenance & support

Ask about AMC (annual maintenance contracts), spare parts availability, and on-site response time. Our 3-year warranty covers parts and labour. AMC available after warranty period with guaranteed response within 48 hours.
