Part of Temperature Humidity Indicator family
View all Temperature Humidity Indicator models
Industrial Instruments · RHT Series

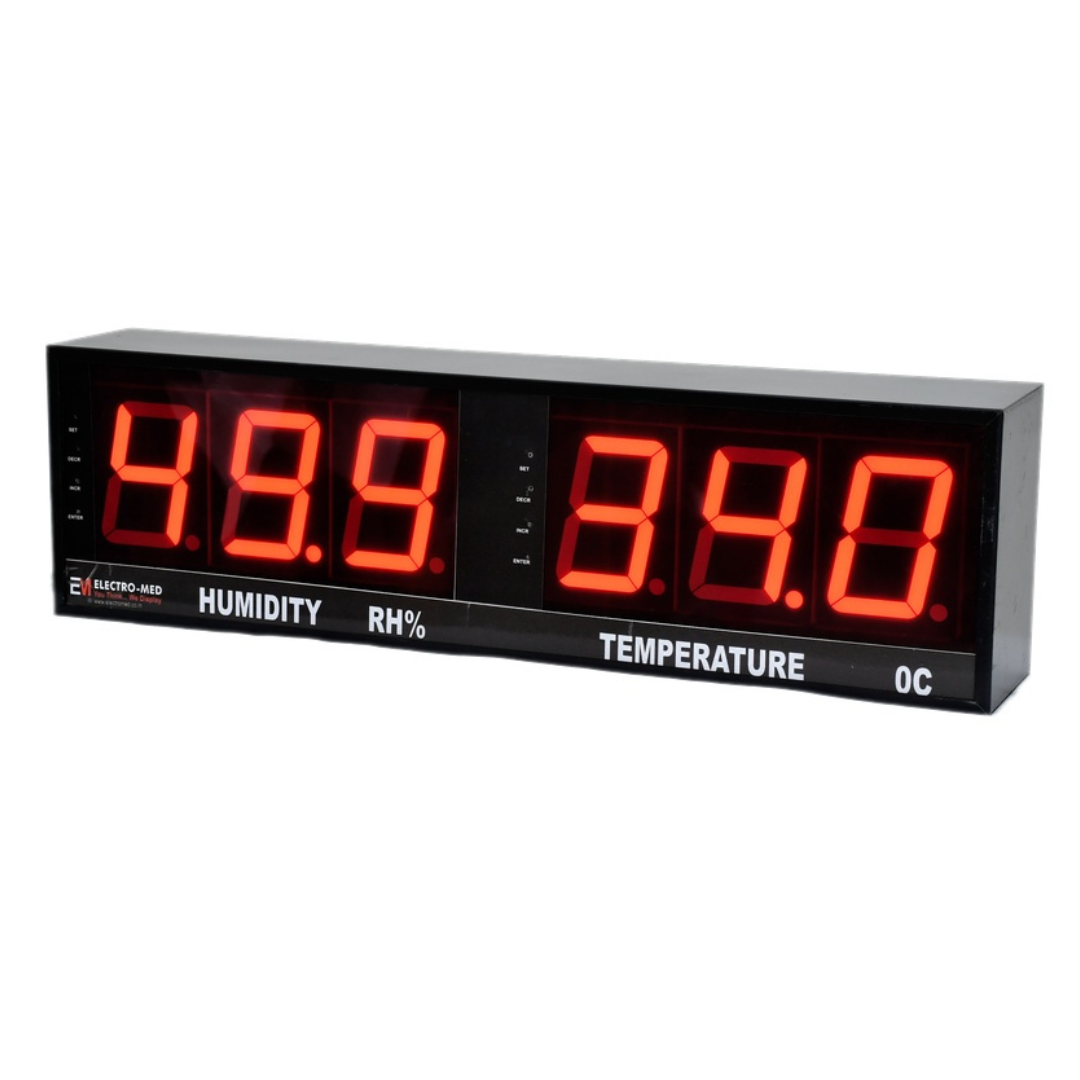

RHT04 Temperature Humidity Indicator

4" Large Format

RHT04 is a large-format temperature and humidity indicator with 4-inch (100mm) LED digits for long-distance visibility on factory floors, processing halls, and large storage facilities. Wall-mount or roof-hanging installation with an MS powder-coated enclosure ensures durability in demanding industrial environments. Ideal for central monitoring points visible across an entire bay or section.

Send Enquiry
Other models in this family
RHT005 Temperature Humidity Indicator 0.5" Panel Mount RHT02 Temperature Humidity Indicator 2" Standard RHT04 Temperature Humidity Indicator 4" Large Format RHT04-4D Temperature Humidity Indicator 4" Four-Digit Precision RHT06 Temperature Humidity Indicator 6" Jumbo
4" Large Format Flow Panel
Key Specifications

At a Glance

Display Size
4" (100mm)
Sensor
Integral / Remote
Enclosure
MS Powder Coated
Protection
IP54
Outputs
None / 4–20mA / Relay / RS485
Dimensions
620mm x 200m x 80mm
Technical Specifications

Full Specification Table

ParameterSpecification
ModelRHT04
Display Size4" (100mm) Red LED 7-Segment
No. of Digits3 + 3 (Temp + RH%)
Measured ParametersTemperature and Relative Humidity
Temp Range0–50 °C
Humidity Range10–95% RH
Temp Accuracy±0.5 °C
Humidity Accuracy±3% RH
Sensor TypeIntegral / Remote (up to 2m cable)
Output OptionsNone / 4–20 mA / Relay / 4–20 mA + Relay / MODBUS RS485
Power Supply230 V AC, 50 Hz / 24 V DC
EnclosureMS Powder Coated
ProtectionIP54
MountingWall mount / roof hanging
Dimensions620mm x 200m x 80mm
MakeElectro-Med
