Process Indicator

Electro-Med’s PRxx Process Indicator is a family of microcontroller based 4 1/2 digit and 5 digit process indicators, for 4-20mA signal input.

They sense signal from any closed loop current source and display the corresponding value of data.They can be interfaced with SCADA/PLC using analog retransmission output for process automation.They are used to display process parameters like flow rate, temperature, level speed, pH, power generation, temperature, pressure etc at remote locations in the plant.

Additional features like high/low limit settings, both side display etc can also be given if required. We have the facility to custom build the indicator to include any other feature required by the customer.

Download Datasheet
Operations Manual

Standard Process Indicator Models

8 INCH PROCESS INDICATOR

8 INCH DOUBLE SIDE PROCESS INDICATOR

6 Inch Process Indicator

6 Inch Double Side Process Indicator

4 Inch Process Indicator

4 Inch Double Side Process Indicator

4 Digit 4 Inch Process Indicator

2 INCH PROCESS INDICATOR

12 Inch Process Indicator

12 INCH DOUBLE SIDE PROCESS INDICATOR

1/2 INCH PROCESS INDICATOR

1 INCH PROCESS INDICATOR

Features
  • Push buttons for on-site programming
  • Senses value from any closed loop sensor
  • Fully automatic operation
  • 4-20 mA signal retransmission (Optional)
  • Both Side Display (Optional)
  • RS485 Communication (Optional)
  • Push buttons for on-site programming
  • Senses value from any closed loop sensor
  • Fully automatic operation
Applications
  • Process value measurement
  • Jumbo Display in plant area
  • Boiler Room
  • Control Room Display
  • Temperature & process indication
  • Pressure/ Level/ Flow Monitoring
  • Plastics moulding/extrusion temperature monitoring
  • Heat treatment – furnace temperature monitoring
  • Weighing platform Remote Process Supervision
Use Cases
  1. Energy: Displaying voltage, current, power output, and energy consumption in power generation facilities for efficient monitoring and maintenance.
  2. Sugar: Display parameters such as flow rate, temperature, sugar concentration etc during production process.
  3. Manufacturing: Monitoring temperature, pressure, flow rate, and level for quality control and process optimization in manufacturing plants.
  4. Chemical and Petrochemical: Monitoring temperature, pressure, pH, and fluid levels to ensure safe and efficient production processes in chemical and petrochemical industries.
  5. Water Treatment: Tracking water flow, turbidity, pH, and chlorine levels to ensure compliance with quality standards in water treatment plants.
  6. Food and Beverage: Controlling temperature, pressure, and ingredient proportions for precise process control during production in the food and beverage industry.
  7. Pharmaceutical: Monitoring temperature, pressure, and concentration during pharmaceutical manufacturing to ensure adherence to strict quality standards.
  8. Oil and Gas: Monitoring pressure, temperature, and flow rates for effective control and optimization of extraction and refining processes in the oil and gas sector.
For full detailed specifications, please download Datasheet from above link

Parameter Specifcation
Input Signal Standard: 4-20 mA

Optional: 0-20 mA, 0.4-2V, 0-2V, 0-10V

Display Size ½ Inch, 1 Inch, 2 Inch, 4 Inch, 6 Inch, 8 Inch, 12 Inch Refer Display Size Table
Digits PRxx : 4

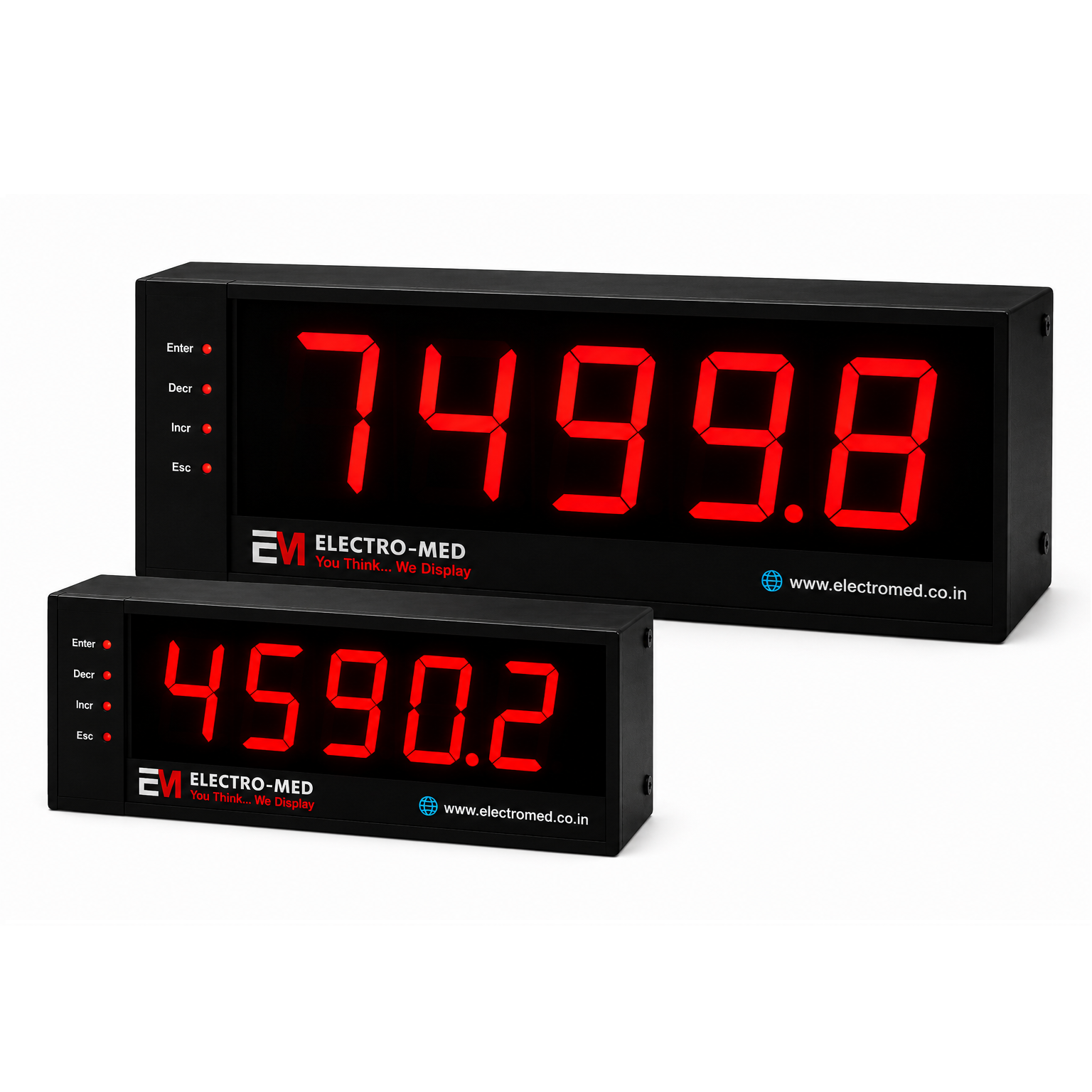

PRxx -5D : 5
Range PRxx: 0 to 9999, -999 to 9999

PRxx-5D: 0 to 99999, -9999 to 99999
Decimal Point Field Settable
Power Supply 230 V AC +/- 10%
Mounting Wall Mounting / Roof Hanging
Enclosure MS Powder Coated
Output Signal 4-20 mA Retransmission (Optional)
MODBUS RS485 (Optional)
MODBUS TCP/IP (Optional)
Alarm Output Separate relays for high and low alarms (Optional)

our valued customers

Hindalco
Adani
NTPC
NHPC
Reliance Power
NPCIL
Birla Carbon
Jaypee
Balrampur Chini Mills
Bajaj Hindusthan
DSCL Sugar

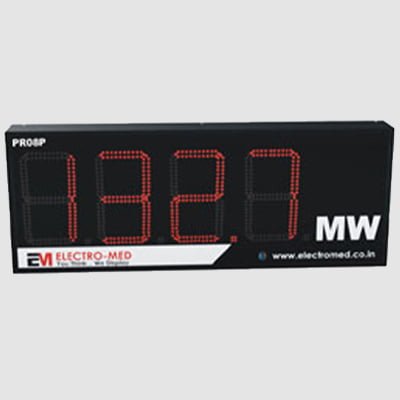

8 INCH PROCESS INDICATOR

Model PR08P
Input  4 to 20 milli Amps
Range  0 to 9999 (settable through push buttons)
Display  4 digits, red
Display height  200 mm / 8 inch
Decimal placement settable
Panel Size  285 x 800 x 80 mm
Operating voltage  230 V AC, 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
Make  Electro-med

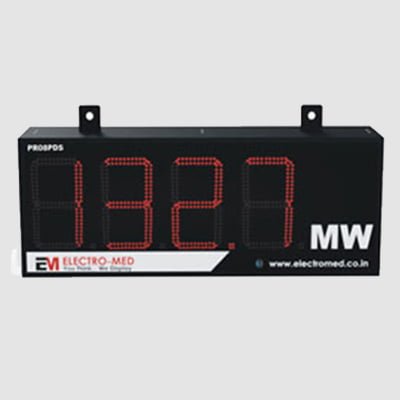

8 INCH DOUBLE SIDE PROCESS INDICATOR

Model PR08DS
Input  4 to 20 milli Amps
Range  0 to 9999 (settable through push buttons)
Display  4 digits, red
Display height  200 mm / 8 inch
Decimal placement settable
Panel Size  285 x 800 x 160 mm
Operating voltage  230 V AC, 50 Hz
MS powder coated enclosure
Cast grade non  fading acrylic panel
Make  Electro-med

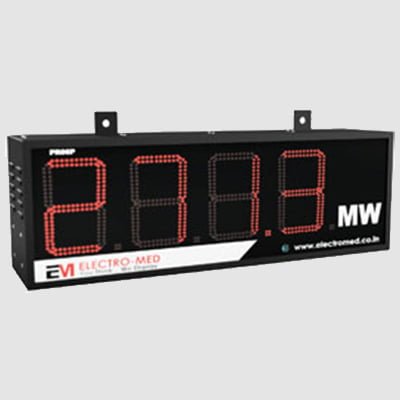

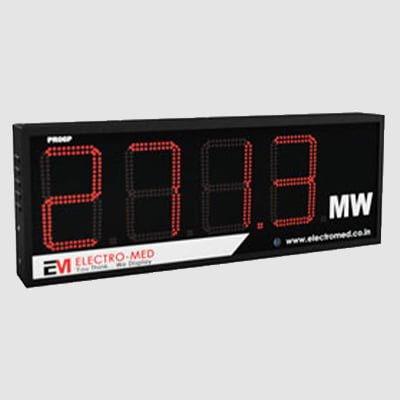

6 Inch Process Indicator

Model PR06P
Input  4 to 20 milli Amps
Range  0 to 9999 (settable through push buttons)
Display  4 digits, red
Display height  150 mm / 6 inch
Decimal placement settable
Panel Size  230 mm x 700 mm x 80 mm
Operating voltage  230 V AC, 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
Make  Electro-med

6 Inch Double Side Process Indicator

Model PR06DS
Display on both Front and Back Sides
Input  4 to 20 milli Amps
Range  0 to 9999 (settable through push buttons)
Display  4 digits, red
Display height  150 mm / 6 inch
Decimal placement settable
Panel Size  230 mm x 700 mm x 160 mm
Operating voltage  230 V AC, 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
Make  Electro-med

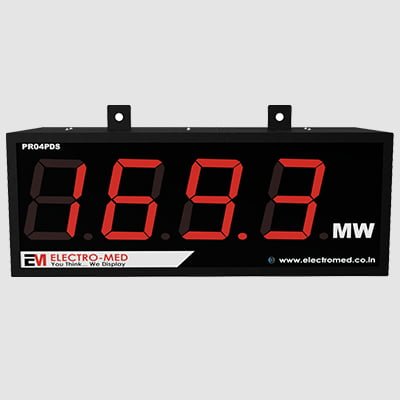

4 Inch Process Indicator

Model PR04P
Input  4 to 20 milli Amps
Range  0 to 9999 (settable through push buttons)
Display  4 digits, red
Display height  100 mm/4 inch
Decimal placement settable
Panel Size  175 x 460 x100 mm
Operating voltage  230 V AC, 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
Make  Electro-med

4 Inch Double Side Process Indicator

Model [PR04DS]
Input  4 to 20 milli Amps
Range  0 to 9999 (settable through push buttons)
Display  4 digits, red
Display height  100 mm/4 inch
Decimal placement settable
Panel Size  175 x 460 x 200 mm
Operating voltage  230 V AC, 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
Make  Electro-med

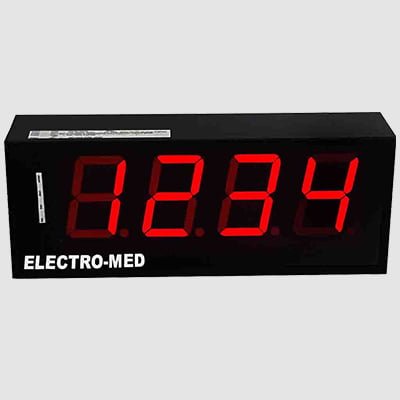

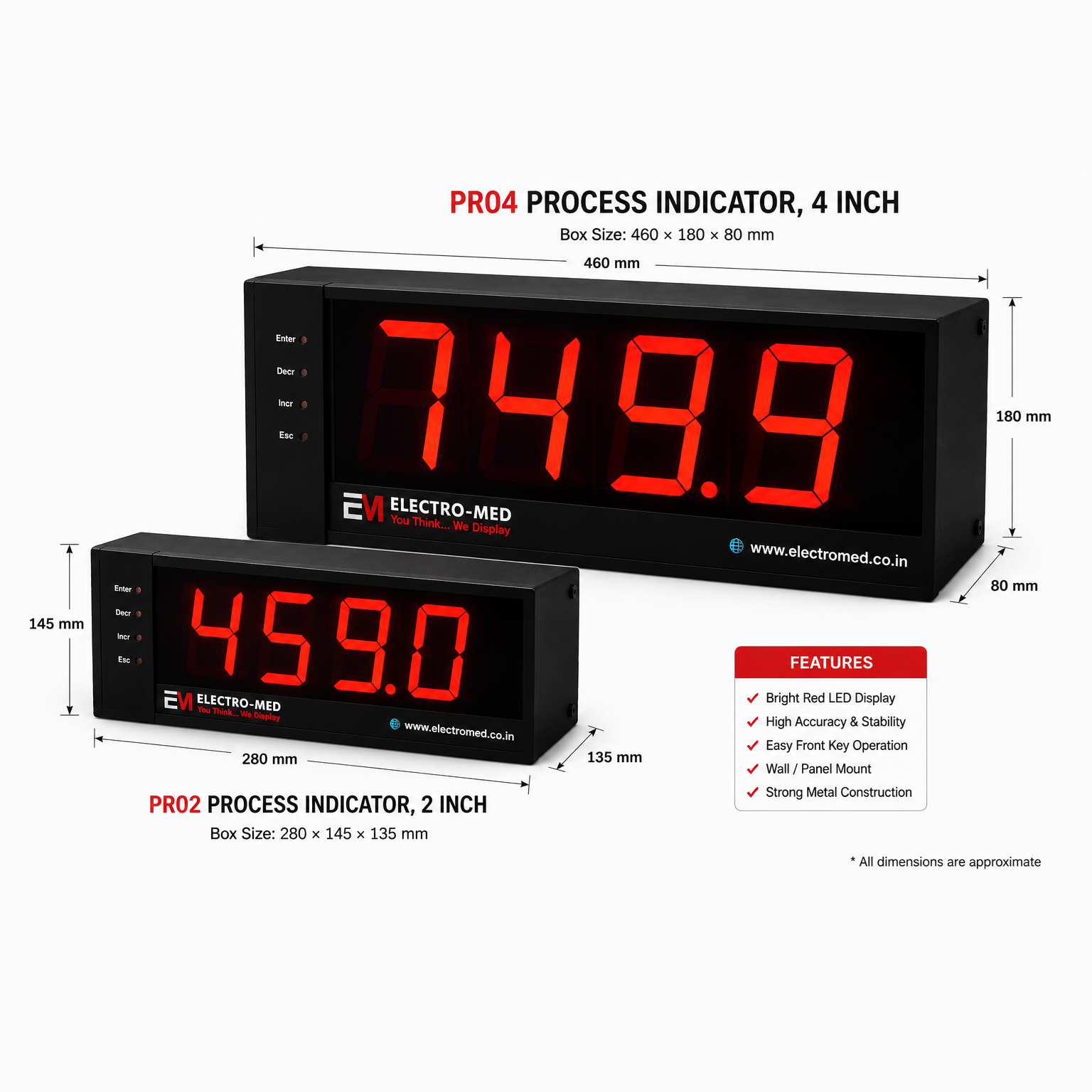

4 Digit 4 Inch Process Indicator

Parameter Value
Input  4 to 20 milli Amps
Range  0 to 9999 (settable through push buttons)
Display  4 digits, red
Display height  100 mm/4 inch
Decimal placement settable
Panel Size  175 x 460 x100 mm
Operating voltage  230 V AC, 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
Make  Electro-med

2 INCH PROCESS INDICATOR

Model PR02P
Input  4 to 20 milli Amps
Range  0 to 9999 (settable through push buttons)
Display  4 digits, red
Display height 50 mm / 2 inch
Decimal placement settable
Panel Size  144 * 288 mm
Operating voltage  230 V AC, 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
Make  ELECTRO-MED

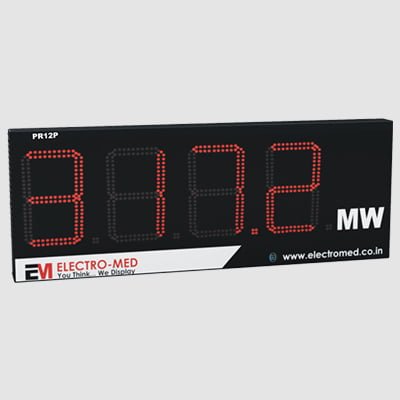

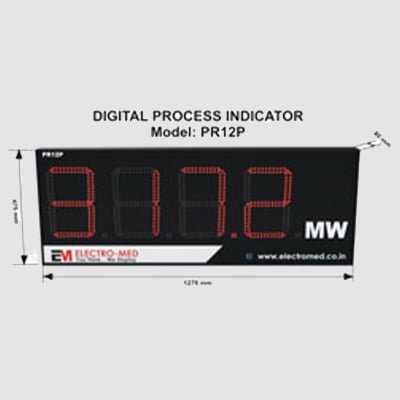

12 Inch Process Indicator

12 INCH DOUBLE SIDE PROCESS INDICATOR

Model PR12DS
Input  4 to 20 milli Amps
Range  0 to 9999 (settable through push buttons)
Display  4 digits, red
Display height  300 mm / 12 inch
Decimal placement settable
Panel Size  475 x 1270 x 160 mm
Operating voltage  230 V AC, 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
Make  Electro-med

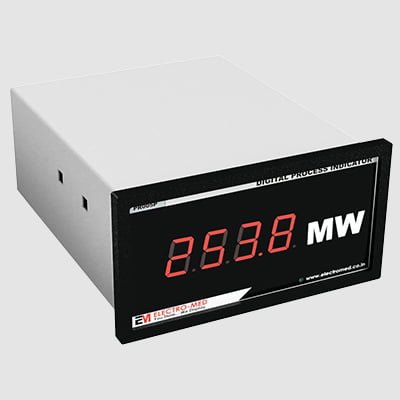

1/2 INCH PROCESS INDICATOR

Model PR005P
Input  4 to 20 milli Amps
Range  0 to 9999 (settable through push buttons)
Display  4 digits, red
Display height  12.5 mm
Decimal placement settable
Panel Size  48 * 96 mm
Operating voltage  230 V AC, 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
Make  ELECTRO-MED

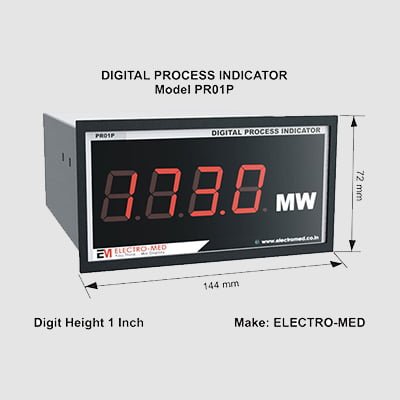

1 INCH PROCESS INDICATOR
