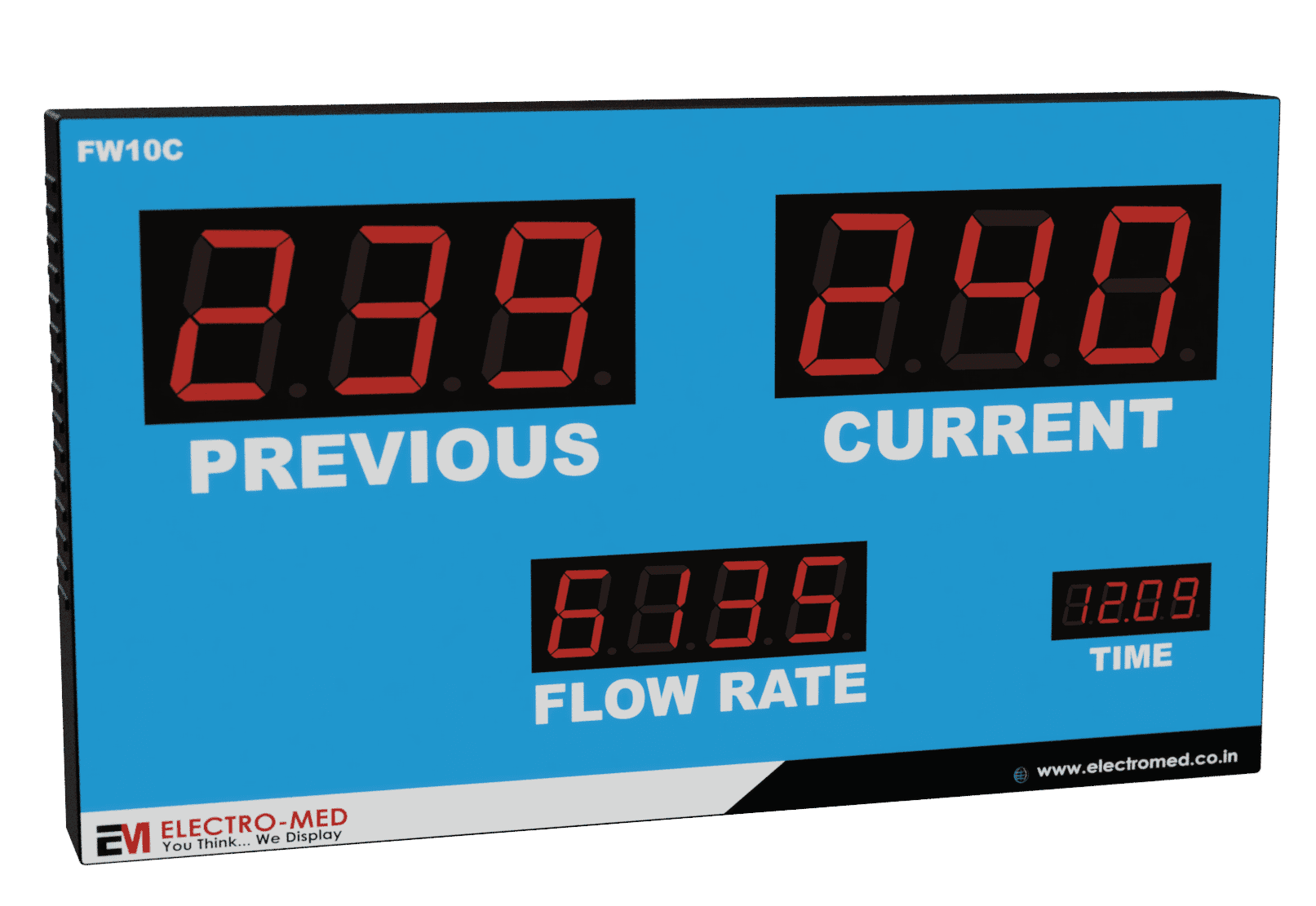

FW10C Flow Rate Totalizer

The FW10C Flow Rate Totalizer offers clear, multi-interval flow tracking with 4-inch displays for hourly data, a 1-inch flow rate display, a 6-inch time display, and a 6-digit season counter, ensuring accurate industrial flow monitoring.

Key Features
  • Input: 4-20 mA
  • Flow Rate Display: 2 Inch
  • Current Hour Total: 4 Inch
  • Previous Hour Total: 4 Inch
  • External Season Total: 0.5 Inch
  • Time: 1 Inch

Specifications

For full detailed specifications, please download product datasheet.

ParameterSpecification
ModelFW10C
Input signal 4 to 20 milli Amps
Range 0 to 200 m3/Hr to 0 to 900 m3/Hr (Programmable)
Flow rate 4 digits, 50 mm (2 inch) high
Current hour 3 digits, 100 mm (4 inch) high
Previous hour display 3 digits, 100 mm (4 inch) high
Totalizer Electronic counter 6 digits, 12.5 mm (½ inch) in separate enclosure
Digital Clock Usage To synchronize hourly transfer of reading
Clock display HH : MM, 4 digits, (1 inch) high Hanging enclosure

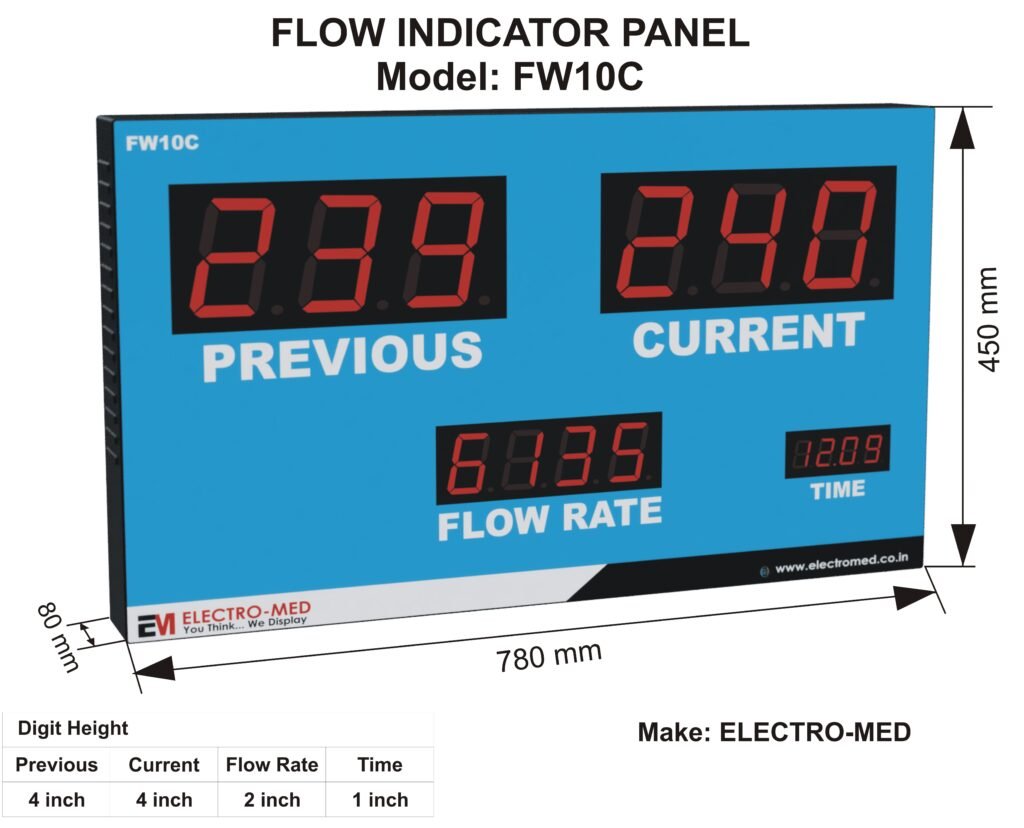

Dimensions 780mm wide * 450 mm high * 80 mm deep
Operating voltage 230 V AC; 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
Make Electro-Med
