Part of Flow Totalizer family
View all Flow Totalizer models
Flow Totalizer · FW Series

FW60T Flow Totalizer

0.5 Inch with Day Total

A multi-parameter flow totalizer with ½-inch displays for flow rate, hourly, daily, and seasonal totals, enabling detailed and synchronized flow analysis.

Send Enquiry Datasheet Manual
Other models in this family
FW10C Flow Totalizer 2 + 4 Inch Jumbo FW30T Flow Totalizer 0.5 Inch Totalizer FW50T Flow Totalizer 0.5 Inch Compact FW60T Flow Totalizer 0.5 Inch with Day Total FW86C Flow Totalizer 8 + 6 Inch Jumbo

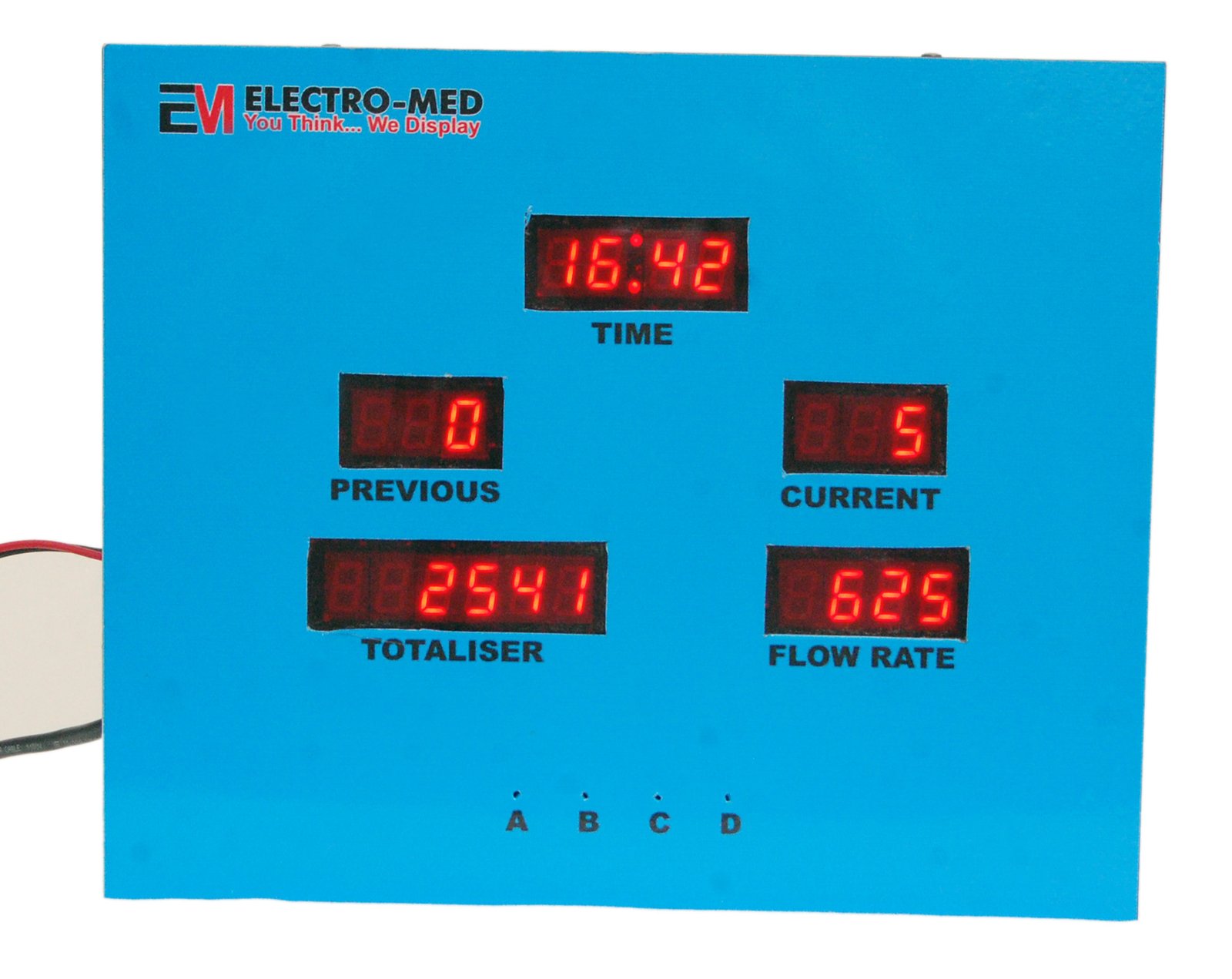

0.5 Inch with Day Total DSC_4807-min
Key Specifications

At a Glance

Input
4-20 mA
Flow Rate Display
0.5 Inch
Current Hour Total
0.5 Inch
Previous Hour Total
0.5 Inch
Current Day Total
0.5 Inch
Previous Day Total
0.5 Inch
External Season Total
0.5 Inch
Time
0.5 Inch
Dimensions
300mm x 280 mm x 80 mm
Technical Specifications

Full Specification Table

ParameterSpecification
ModelFW60T
Input signal4 to 20 milli Amps
Flow Rate Range0 to 999.9 (Programmable)
Flow Rate Display4 digits, 12.5 mm (½ inch) high
Current Hour Display3 digits, 12.5 mm (½ inch) high
Previous Hour Display3 digits, 12.5 mm (½ inch) high
Current Day Display5 digits, 12.5 mm (½ inch) high
Previous Day Display5 digits, 12.5 mm (½ inch) high
Season Total Display6 digits, 12.5 mm (½ inch) high
Digital Clock UsageTo synchronize hourly transfer of reading
Clock displayHH : MM, 4 digits, (½ inch) high Hanging enclosure
Dimensions300mm wide * 280 mm high * 80 mm deep
Operating voltage230 V AC; 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
MakeElectro-Med
Full dimensional drawings and wiring diagrams are in the datasheet. Download Datasheet (PDF)
Resources

Product Documentation

FW60T Flow Totalizer — Product Datasheet

Technical specifications, dimensions, wiring diagrams

Download

FW60T Flow Totalizer — Installation Manual

Wiring, setup, field programming guide

Download
