Part of Flow Totalizer family
View all Flow Totalizer models
Flow Totalizer · FW Series

FW50T Flow Totalizer

0.5 Inch Compact

An advanced flow totalizer featuring ½-inch displays for flow rate, hourly, and seasonal totals, along with a built-in clock for synchronized industrial monitoring.

Send Enquiry Datasheet Manual
Other models in this family
FW10C Flow Totalizer 2 + 4 Inch Jumbo FW30T Flow Totalizer 0.5 Inch Totalizer FW50T Flow Totalizer 0.5 Inch Compact FW60T Flow Totalizer 0.5 Inch with Day Total FW86C Flow Totalizer 8 + 6 Inch Jumbo

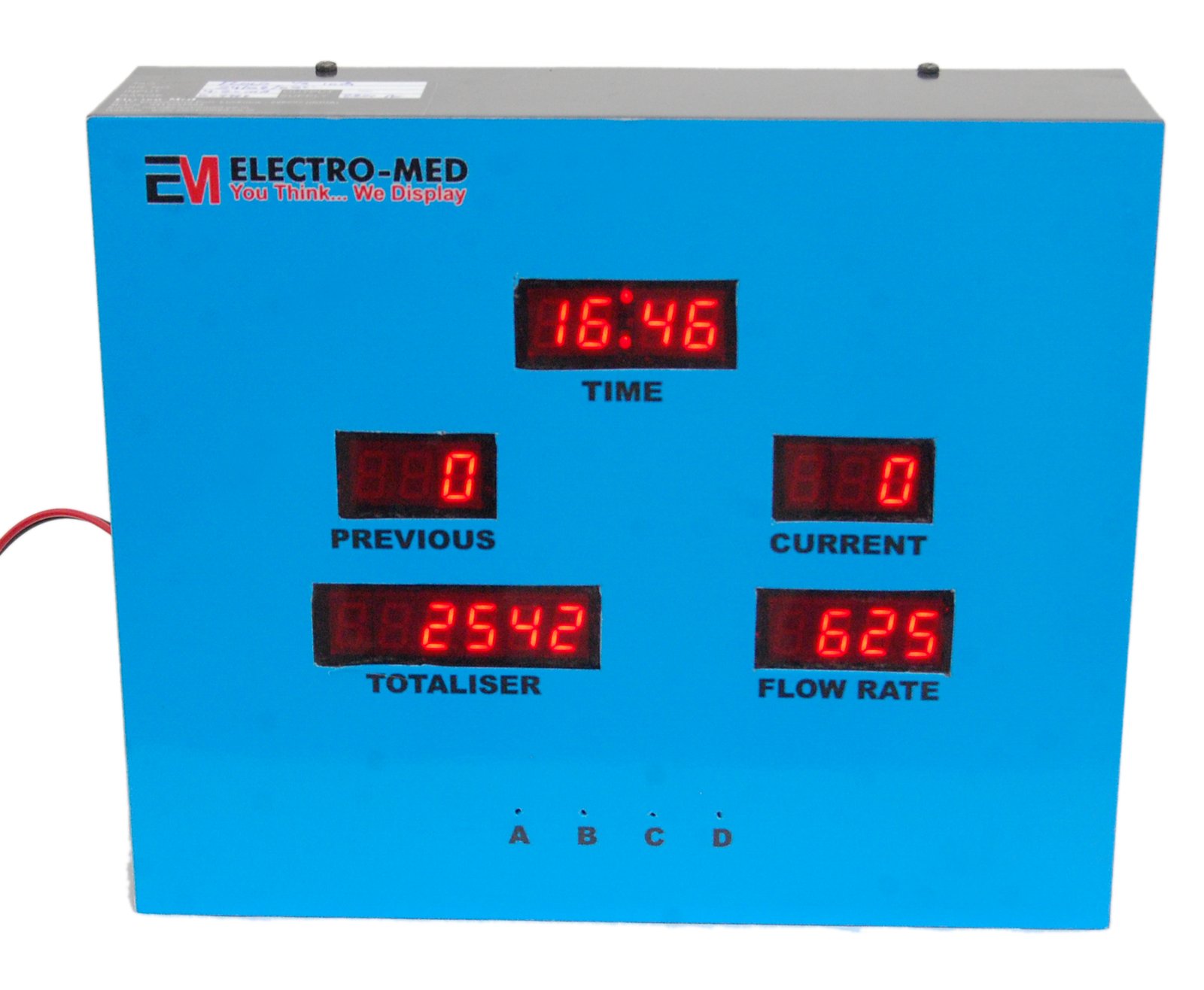

0.5 Inch Compact DSC_4810
Key Specifications

At a Glance

Input
4-20 mA
Flow Rate Display
0.5 Inch
Current Hour Total
0.5 Inch
Previous Hour Total
0.5 Inch
External Season Total
0.5 Inch
Time
0.5 Inch
Dimensions
300mm x 280 mm x 80 mm
Technical Specifications

Full Specification Table

ParameterSpecification
ModelFW50T
Input signal4 to 20 milli Amps
Flow Rate Range0 to 999.9 (Programmable)
Flow Rate Display4 digits, 12.5 mm (½ inch) high
Current Hour Display3 digits, 12.5 mm (½ inch) high
Previous Hour Display3 digits, 12.5 mm (½ inch) high
Season Total Display6 digits, 12.5 mm (½ inch) high
Digital Clock UsageTo synchronize hourly transfer of reading
Clock displayHH : MM, 4 digits, (½ inch) high Hanging enclosure
Dimensions300mm wide * 280 mm high * 80 mm deep
Operating voltage230 V AC; 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
MakeElectro-Med
Full dimensional drawings and wiring diagrams are in the datasheet. Download Datasheet (PDF)
Resources

Product Documentation

FW50T Flow Totalizer — Product Datasheet

Technical specifications, dimensions, wiring diagrams

Download

FW50T Flow Totalizer — Installation Manual

Wiring, setup, field programming guide

Download
