FW50T Flow Rate Totalizer

Home > Instruments Instruments > Flow Rate Totalizer > FW50T

FW50T Flow Rate Totalizer

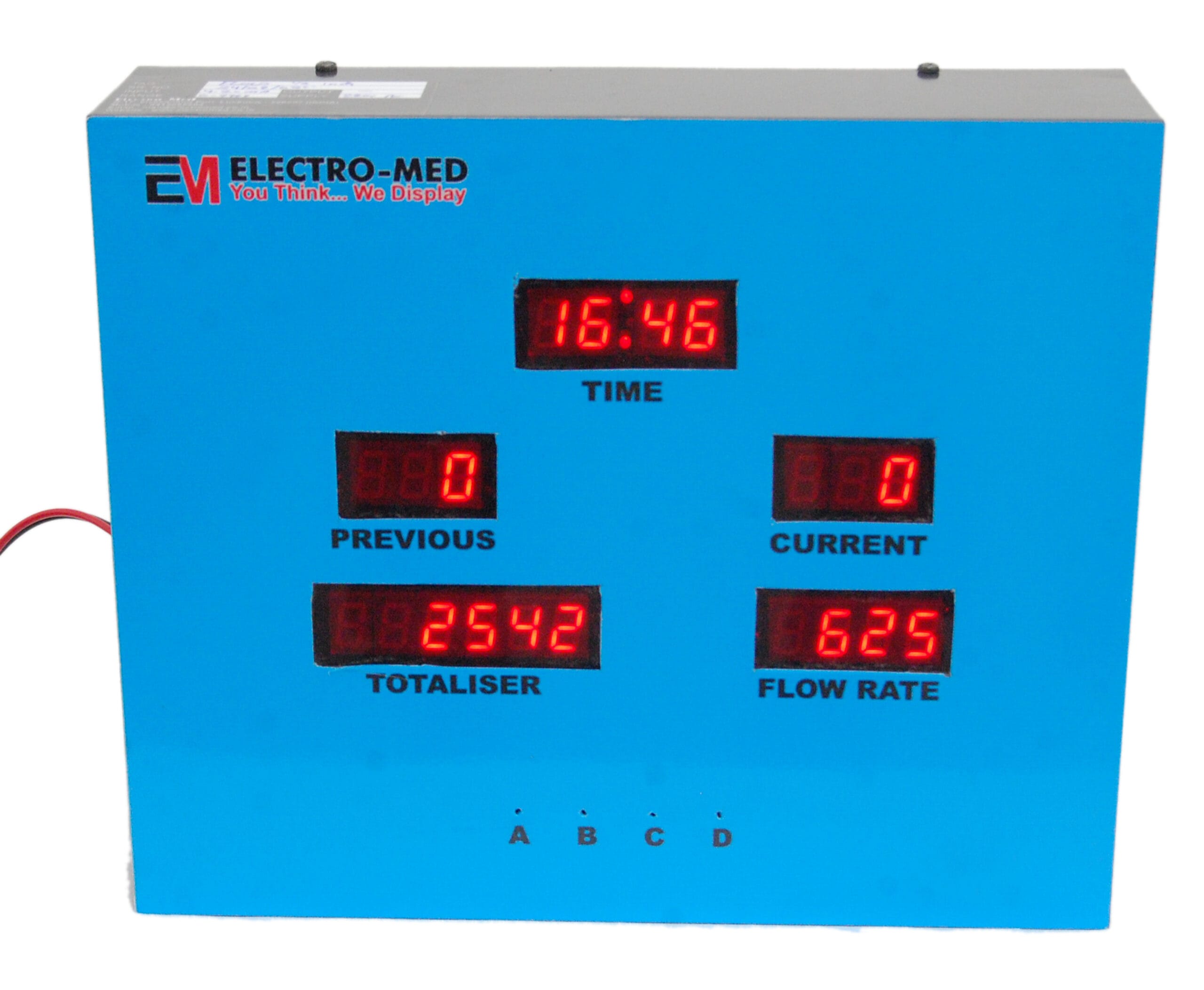

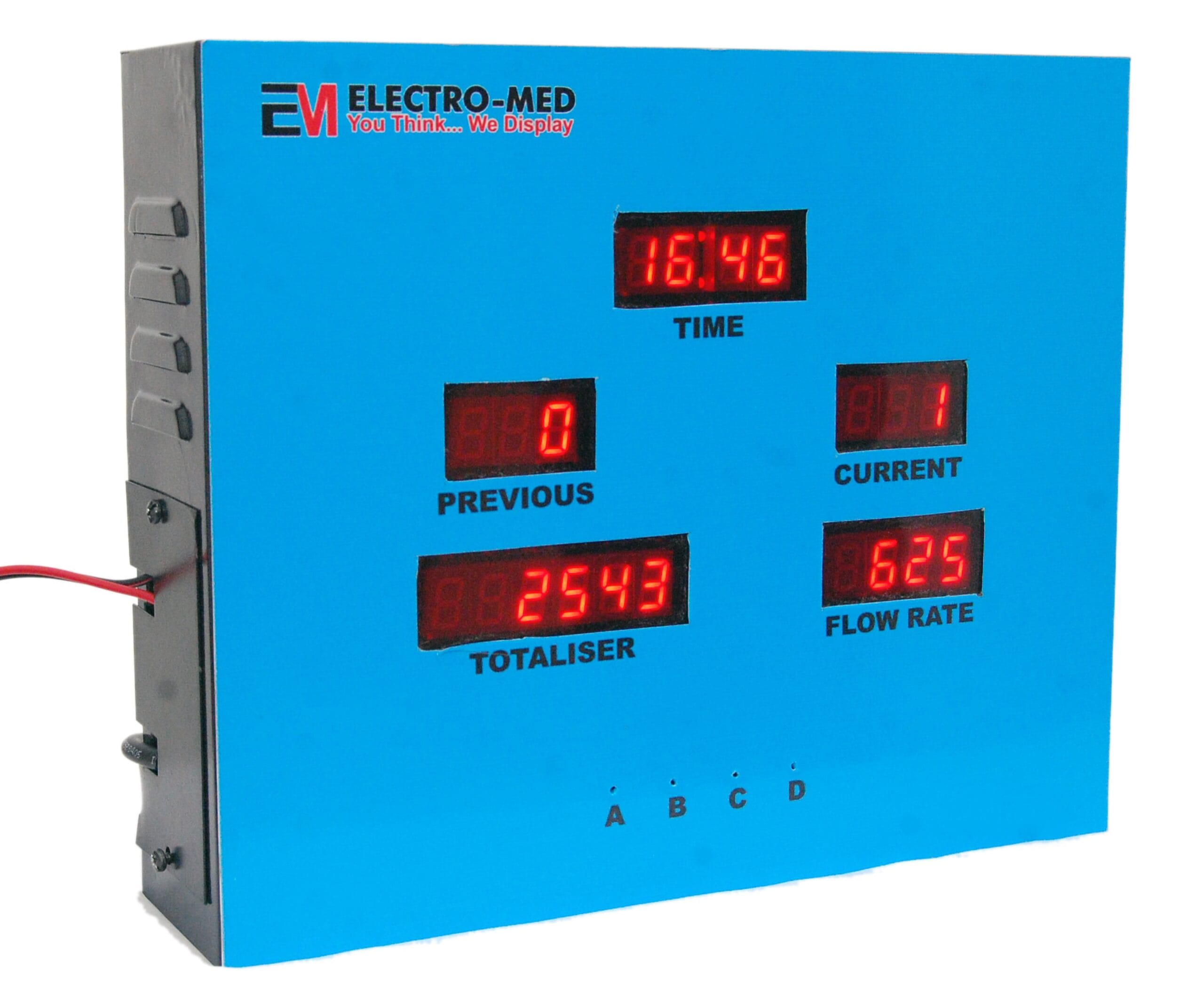

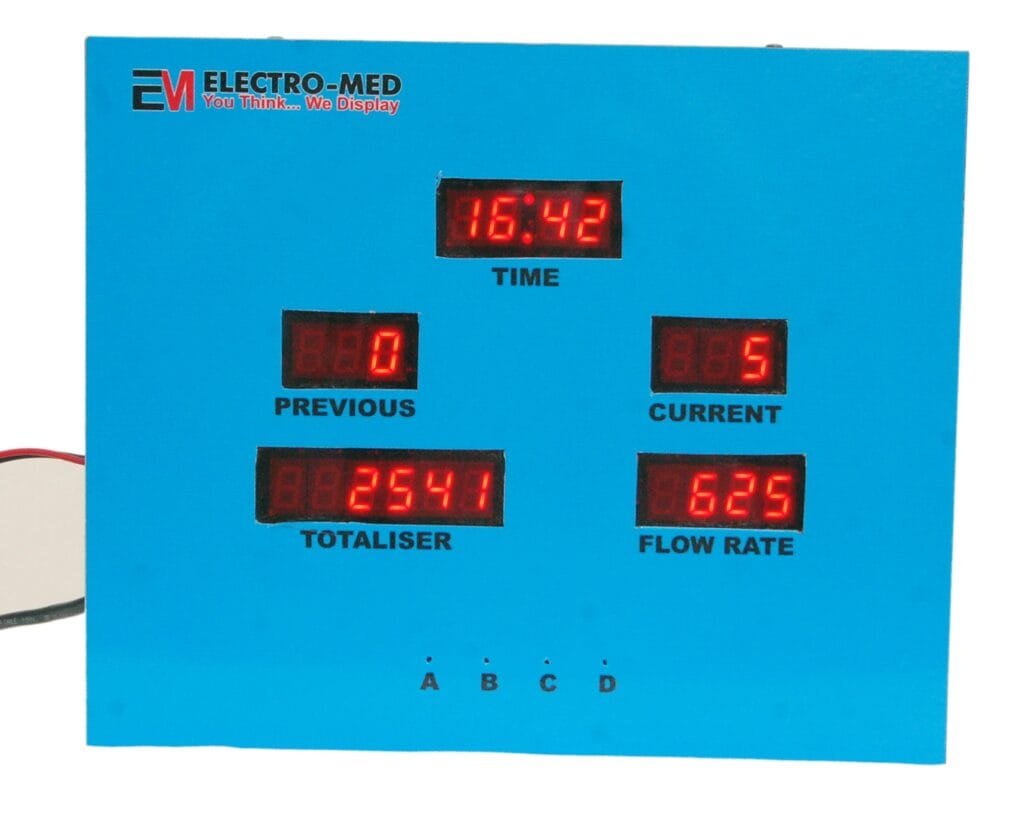

The FW10C Flow Rate Totalizer offers clear, multi-interval flow tracking with 4-inch displays for hourly data, a 1-inch flow rate display, a 6-inch time display, and a 6-digit season counter, ensuring accurate industrial flow monitoring.

Key Features
  • Input: 4-20 mA
  • Flow Rate Display: 2 Inch
  • Current Hour Total: 4 Inch
  • Previous Hour Total: 4 Inch
  • External Season Total: 0.5 Inch
  • Time: 1 Inch

Specifications

For full detailed specifications, please download product datasheet.

ParameterSpecification
ModelFW10C
Input signal 4 to 20 milli Amps
Flow Rate Range 0 to 999.9 (Programmable)
Flow Rate Display 4 digits, 12.5 mm (½ inch) high
Current Hour Display 3 digits, 12.5 mm (½ inch) high
Previous Hour Display 3 digits, 12.5 mm (½ inch) high
Season Total Display 6 digits, 12.5 mm (½ inch) high
Digital Clock Usage To synchronize hourly transfer of reading
Clock display HH : MM, 4 digits, (½ inch) high Hanging enclosure
Dimensions 300mm wide * 280 mm high * 80 mm deep
Operating voltage 230 V AC; 50 Hz
MS powder coated enclosure
Cast grade non fading acrylic panel
Make Electro-Med

Explore Flow Rate Totalizer Models

Custom Flow Totalizer
  • Tailor-Made Design
  • Supports 4-20mA, pulse, or other custom inputs.
  • Multiple size options
  • Monitors flow rate, totals, and more as needed.
  • Easily integrates with existing systems and sensors.
FW10C Flow Rate Totalizer
  • Input: 4-20 mA
  • Flow Rate Display: 2 Inch
  • Current Hour Total: 4 Inch
  • Previous Hour Total: 4 Inch
  • External Season Total: 0.5 Inch
  • Time: 1 Inch
FW30T Flow Rate Totalizer
  • Input: 4-20 mA
  • Flow Rate Display: 0.5 Inch
  • Season Total: 0.5 Inch
